“Handmade by machines” is the slogan of BMC impec 2013. BMC defining their goal as “zero error”. And the result is really an impressive machine. You can see and feel the perfect quality of every detail.
SNC – Shell-Node-Concept
The Shell Node Concept – SNC guarantees maximum stiffness and stability of the frame joints on the impec. These high-density half-shells are made from a newly developed carbon compound material and are bonded under precision control with the frame tubes during assembly of the frame. The benefit of the SNC half-shell technology lies in its total control over the junctions. This results in absolutely flawless frame joints on the impec.
LSW – Load-Specific-Weave
In this process, the tubes for the frame of the impec are woven first of all from carbon fibers and then in a second step are converted to a highly rigid structure using a special resin compound. The load-specific weaving process is fully automated. This results in absolutely flawless frame tubes.
Related: BMC impec Lamborghini Edition
BMC impec 2013 Super Record EPS
- Frame: impec LSW Carbon
- Fork: impec, Carbon
- Crankset: Campagnolo Super Record Ti Ultra Torque, 53-39
- Cog: Campagnolo Super Record 12-25 (11 speed)
- Front Derailleur: Campagnolo Super Record EPS
- Rear Derailleur: Campagnolo Super Record EPS
- Shifters: Campagnolo Super Record EPS
- Brakes: Campagnolo Super Record Skeleton
- Handlebar: Easton EC90 SLX3
- Stem: Easton, EC90
- Seat Post: impec integrated, Carbon
- Saddle: Fizik Arione CX Braided
- Hubs: Mavic Ksyrium SR
- Rims: Mavic Ksyrium SR
- Tires: Continental Force & Attack, foldable
- Color: Stealth
- Weight (W/O Pedals): 6.80 kg
- Sizes (Cm): 50 / 53 / 55 / 57 / 60
BMC impec 2013 Super Record
- Frame: impec LSW Carbon
- Fork: impec, Carbon
- Crankset: Campagnolo Super Record Ti Ultra-Torque, 53-39
- Cog: Campagnolo Super Record 12-25 (11 speed)
- Front Derailleur: Campagnolo Super Record
- Rear Derailleur: Campagnolo Super Record
- Shifters: Campagnolo Super Record
- Brakes: Campagnolo Super Record Skeleton
- Handlebar: Easton EC90 SLX3
- Stem: Easton, EC90
- Seat Post: impec integrated, Carbon
- Saddle: Fizik Arione CX Braided
- Hubs: Mavic Ksyrium SR
- Rims: Mavic Ksyrium SR
- Tires: Continental Force & Attack, foldable
- Color: White
- Weight (W/O Pedals): 7.10 kg
- Sizes (Cm): 50 / 53 / 55 / 57 / 60
BMC impec 2013 Dura Ace Di2
- Frame: impec LSW Carbon
- Fork: impec, Carbon
- Crankset: Shimano Dura-Ace FC-9000, 53-39
- Cog: Shimano Dura-Ace CS-9000, 11-25 (11 speed)
- Front Derailleur: Shimano Dura-Ace Di2 FD-9070
- Rear Derailleur: Shimano Dura-Ace Di2 RD-9070
- Shifters: Shimano Dura-Ace Di2 ST-9070
- Brakes: Shimano Dura-Ace BR-9000
- Handlebar: Easton EC90 SLX3
- Stem: Easton, EC90
- Seat Post: impec integrated, Carbon
- Saddle: Fizik Arione CX Braided
- Hubs: Mavic Ksyrium SR
- Rims: Mavic Ksyrium SR
- Tires: Continental Force & Attack, foldable
- Color: Team Red
- Sizes (Cm): 50 / 53 / 55 / 57 / 60
BMC impec 2013 Dura Ace
- Frame: impec LSW Carbon
- Fork: impec, Carbon
- Crankset: Shimano Dura-Ace FC-9000, 53-39
- Cog: Shimano Dura-Ace CS-9000, 11-25 (11 speed)
- Front Derailleur: Shimano Dura-Ace FD-9000
- Rear Derailleur: Shimano Dura-Ace RD-9000
- Shifters: Shimano Dura-Ace ST-9000
- Brakes: Shimano Dura-Ace BR-9000
- Handlebar: Easton EC90 SLX3
- Stem: Easton, EC90
- Seat Post: impec integrated, Carbon
- Saddle: Fizik Arione CX Braided
- Hubs: Mavic Ksyrium SR
- Rims: Mavic Ksyrium SR
- Tires: Continental Force & Attack, foldable
- Color: White
- Sizes (Cm): 50 / 53 / 55 / 57 / 60
BMC impec Dura Ace, rear view BMC impec Dura Ace

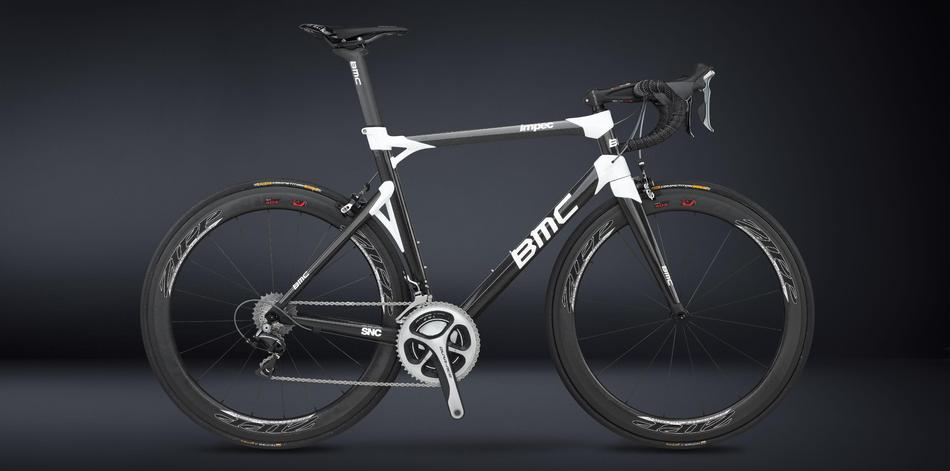

BMC impec Dura Ace, side view
BMC impec Dura Ace Di2, rear view BMC impec Dura Ace Di2
BMC impec Dura Ace Di2, side view BMC impec Campagnolo Super Record
BMC impec Campagnolo Super Record, side view
BMC impec Campagnolo Super Record, rear view
BMC impec crosslock
BMC impec Campagnolo Super Record EPS, drivetrain

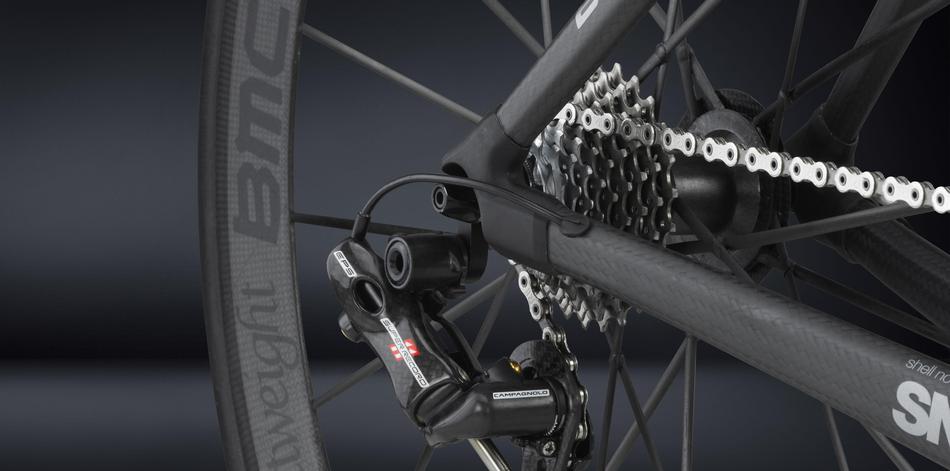

BMC impec Campagnolo Super Record EPS, cogset and rear derailleur

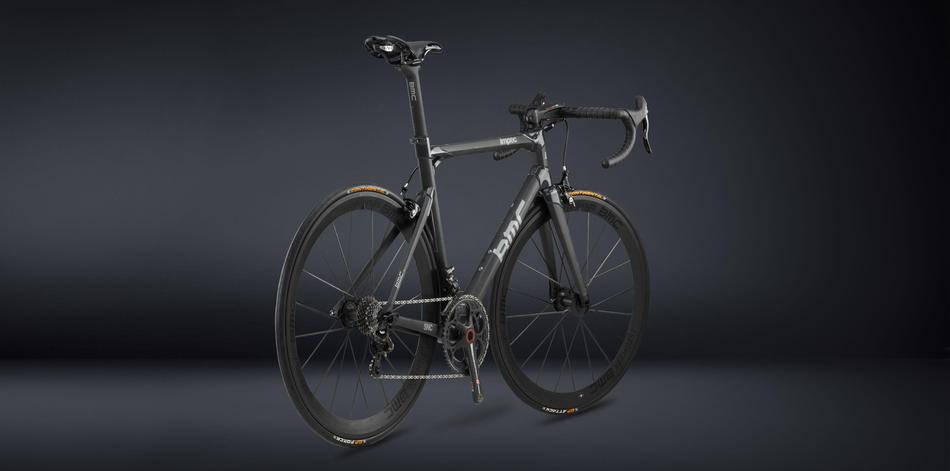

BMC impec Campagnolo Super Record EPS, rear view
BMC impec Campagnolo Super Record EPS, head tube & top tube
BMC impec Campagnolo Super Record EPS, crankset BMC impec Campagnolo Super Record EPS
BMC impec Campagnolo Super Record EPS
